Light Duty Roll End Bearings

Light Duty Roll End Bearings

Used in roller conveyors for smooth, low-friction rotation. Designed for smaller load weights and less harsh environments.

A full line of conveyor roll end bearings, including standard, light duty, free-draining, blind-bore, V-grooved or conical bearings, for any standard pipe or tubing from 1 1/4″ 20 gauge tube through 6″, schedule-40 pipe are also available. Non-standard pipes can also be accommodated. Custom sizes available upon request.

Light Duty Roll End Bearings

I 1/4 Thru 2 1/2in Tubing-Pipe O.D

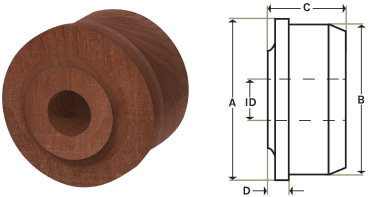

Specifications

+

Part No.

A = Tubing/Pipe OD

Tubing/Pipe Gage

B = Tubing/Pipe ID

Tubing/Pipe Wall

C = Overall Length

D = Flange + Boss

1020WL

1018WL

1016WL

11/4

20

18

16

1.180

1.152

1.120

0.035

0.049

0.065

3/4

3/16

8P4WL

1.315

(1″ PIPE)

SCH40

1.049

0.133

3/4

3/16

1118WL

1116WL

1 3/8

18

16

1.277

1.245

0.049

0.065

3/

3/16

1220WL

1218WL

1216WL

1 1/2

20

18

16

1.430

1.402

1.370

0.035

0.049

0.065

1

1/4

10EMWL

1.510

(1 1/4” EMT)

EMT

1.380

0.065

1

1/

1320WL

1318WL

1 5/8

20

18

1.555

1.527

0.035

0.049

1

1/4

12EMWL

1.740

(1 1/2” EMT)

EMT

1.610

0.065

1

1/4

1420WL

1418WL

1416WL

1 3/4

20

18

16

1.680

1.652

1.620

0.035

0.049

0.065

1

1/4

1520WL

1518WL

1516WL

1 7/8

20

18

16

1.805

1.777

1.745

0.035

0.049

0.065

1

1/4

12P4WL

1.900

(11/2” PIPE)

SCH 40

1.610

0.145

1

1/

12P8WL

SCH 80

1.500

0.200

1

1/4

1620WL

1618WL

1616WL

2

20

18

16

1.930

1.902

1.870

0.035

0.049

0.065

1

1/4

16EMWL

2.197

(2″ EMT)

EMT

2.067

0.065

1

1/4

1820WL

1818WL

1816WL

2 1/4

20

18

16

2.180

2.152

2.120

0.035

0.049

0.065

1

1/4

2020WL

2018WL

2016WL

2 1/2

20

18

16

2.430

2.402

2.370

0.035

0.049

0.065

1

1/4
