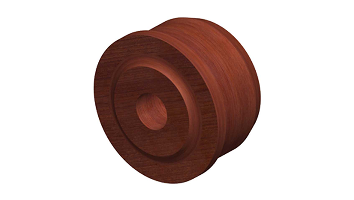

Standard Duty Roll End Bearings

Standard Duty Roll End Bearings

Used in conveyor rollers for smooth rotation. Designed for heavy load weights, higher operating speeds, and more demanding conditions.

A full line of conveyor roll end bearings, including standard and light duty bearings, for any standard pipe or tubing from 1/2″ 20 gauge tube through 6″, schedule-40 pipe are also available. Non-standard pipes can also be accommodated. Custom sizes available upon request.

Standard Duty Roll End Bearings

1 3/8” Thru 4” Tubing-pipe O.D

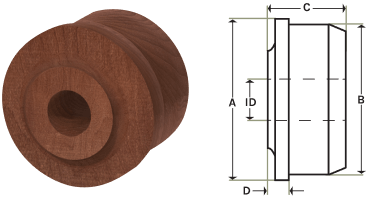

standard roll end illustration

Specifications

+

Part No.

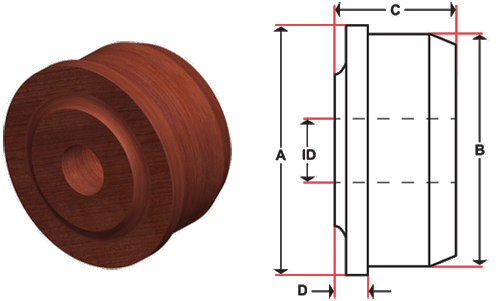

A = Tubing/Pipe OD

Tubing/Pipe Gage

B = Tubing/Pipe ID

Tubing/Pipe Wall

C = Overall Length

D = Flange + Boss

1118WR

1116WR

1 3/8”

18”

16”

1.277”

1.245”

0.049”

0.065”

1 1/4”

1/4”

1218WR

1216WR

1214WR

1 1/2”

18”

16”

14”

1.402”

1.370”

1.334”

0.049”

0.065”

0.083”

1 1/2

1/4”

10EMWR

1.510”

(1 1/4” EMT)

EMT

1.380”

0.065”

1 1/2”

1/4 ”

1316WR

1311WR

1 5/8”

16”

11”

1.495”

1.385”

0.065”

0.120”

1 1/2”

1/4”

10P4WR

1.660

(1 1/4” PIPE)

SCH 40

1.380”

0.140”

1 1/2”

1/4”

12EMWR

1.740”

(1 1/2” EMT)

EMT

1.610”

0.065”

1 1/2”

1/4 ”

1416WR

1414WR

1413WR

1411WR

1 3/4”

16”

14”

13”

11”

1.620”

1.584”

1.560”

1.510”

0.065”

0.083”

0.095”

0.120”

1 1/2”

1/4 ”

1516WR

1513WR

1 7/8”

16”

13”

1.745”

1.685”

0.065”

0.095”

1 1/2”

1/4”

12P4WR

12P8WR

1.900”

(1 1/2” PIPE)

SCH 40

SCH 80

1.610”

1.500”

0.145”

0.200”

1 1/2”

1/4”

1618WR

1616WR

1614WR

1613WR

1611WR

2”

18”

16”

14”

13”

11”

1.902”

1.870”

1.834”

1.810”

1.760”

0.049”

0.065”

0.083”

0.095”

0.120”

1 5/8”

3/8”

16EMWR

2.197”

(2″ EMT)

EMT

2.067”

0.065”

1 5/8”

3/8”

1818WR

1816WR

1814WR

1813WR

1811WR

1810WR

2 1/4”

18”

16”

14”

13”

11”

10”

2.152”

2.120”

2.084”

2.060”

2.010”

1.982”

0.049”

0.065”

0.083”

0.095”

0.120”

0.134”

1 5/8”

3/8”

1916WR

1913WR

1911WR

2 3/8”

16”

13”

11”

2.245”

2.185”

2.135”

0.065”

0.095”

0.120”

1 5/8”

3/8 ”

16P4WR

16P8WR

2.375”

(2″ PIPE)

SCH 40

SCH 80

2.067”

1.939”

0.154”

0.218”

1 5/8”

3/8 ”

2016WR

2014WR

2013WR

2011WR

2010WR

2 1/2”

16”

14”

13”

11”

10”

2.370”

2.334”

2.310”

2.260”

2.232”

0.065”

0.083”

0.095”

0.120”

0.134”

1 5/8”

3/8 ”

2216WR

2213WR

2211WR

2 3/4”

16”

13”

11”

2.620”

2.560”

2.510”

0.065”

0.095”

0.120”

1 5/8”

3/8 ”

20P4WR

2.875”

(2 1/2” PIPE)

SCH 40

2.469”

0.203”

1 5/8”

3/8 ”

2416WR

2414WR

2413WR

2411WR

3”

16”

14”

13”

11”

2.870”

2.834”

2.810”

2.760”

0.065”

0.083”

0.095”

0.120”

1 3/4”

3/8”

2616WR

2613WR

3 1/4”

16

13

3.120”

3.060”

0.065”

0.095”

1 3/4”

3/8 ”

24P4WR

24P8WR

3.500”

(3″ PIPE)

SCH 40

SCH 80

3.068”

2.900”

0.216”

0.300”

1 3/4”

3/8 ”

2816WR

2813WR

2811WR

3 1/2”

16”

13”

11”

3.370”

3.310”

3.260”

0.065”

0.095”

0.120”

1 3/4 ”

3/8”

3016WR

3011WR

3 3/4”

16”

11”

3.620”

3.510”

0.065”

0.120”

1 3/4”

3/8”

28P4WR

4.000”

(31/2” PIPE)

SCH 40

3.548”

0.226”

1 3/4”

3/8”

3216WR

3214WR

3213WR

3211WR

4”

16”

14”

13”

11”

3.870”

3.834”

3.810”

3.760”

0.065”

0.083”

0.095”

0.120”

1 3/4”

3/8 ”
