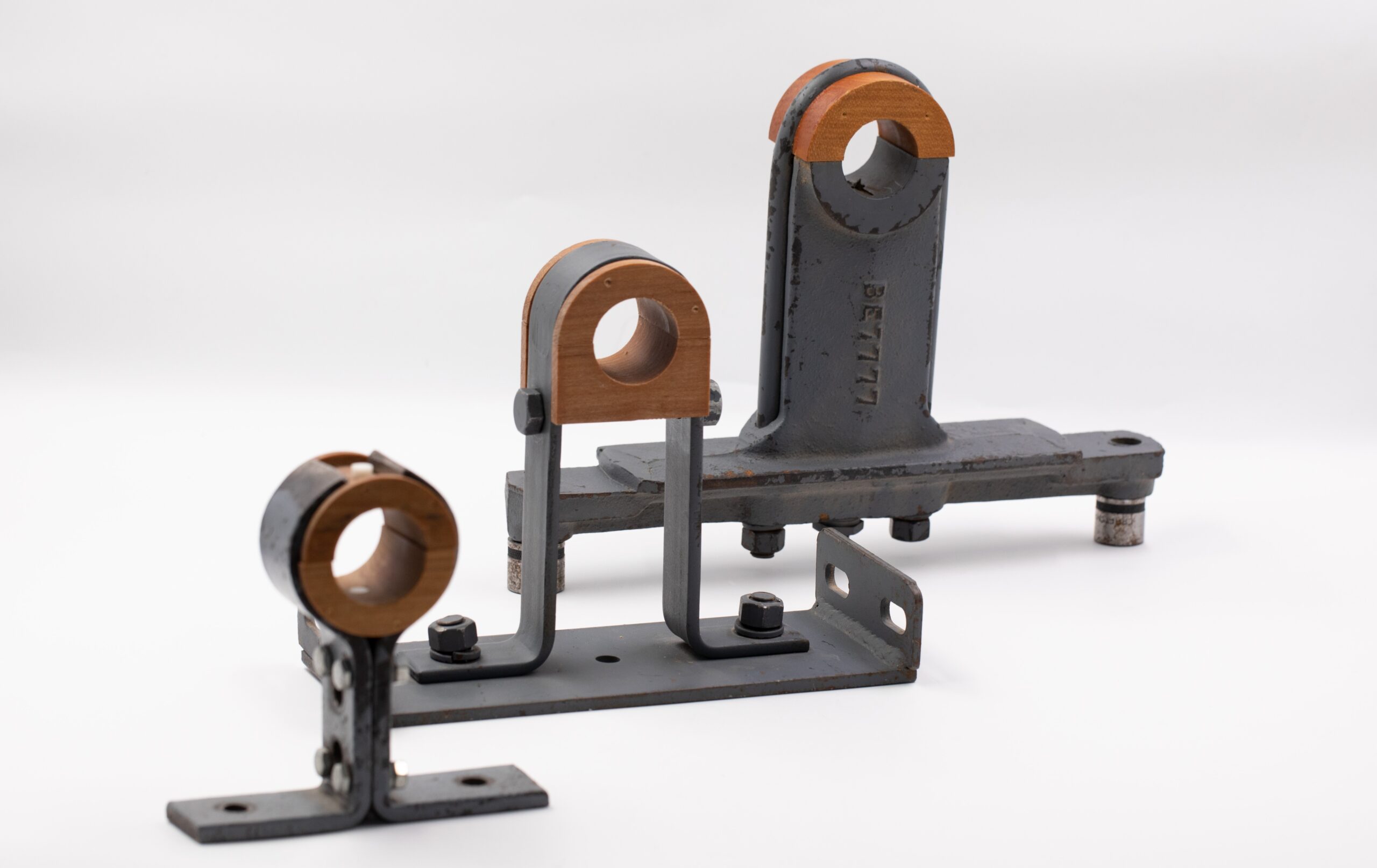

Woodex® Screw Conveyor Hanger Bearings

HANGER BEARING Type 226, 216, AND 18B

Used to support the rotating shaft in screw-conveying machinery. Ensures alignment, distributes weight, and provides smooth, low-friction rotation, even in applications involving abrasive or corrosive materials.

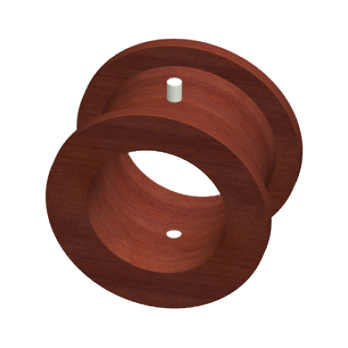

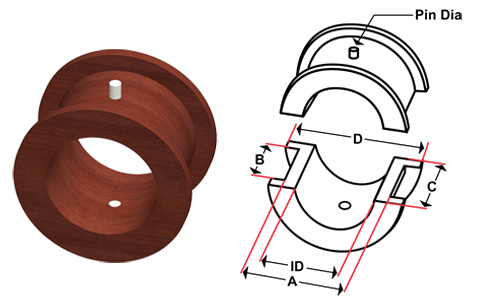

Hanger Bearing Type 226

Fits hanger styles 226, 220, 326, 20B, 26B, & 28B

sc type 216 1 illustration

Specifications

+
Part No. ID A B C D
WX1000-226 1” 11/2” 11/16” 17/16” 17/8”
WX1250-226 11/4” 21/8” 19/16” 115/16” 21/2”
WX1500-226 11/2” 21/8” 19/16” 115/16” 21/2”
WX2000-226 2” 23/4” 19/16” 115/16” 31/8”
WX2716-226 27/16” 31/4” 23/8” 215/16” 33/4”
WX3000-226 3” 4” 23/8” 215/16” 41/2”
WX3716-226 37/16” 43/4” 31/8” 315/16” 51/2”

Documentation

+

Type 226 Hanger Bearing Brochure

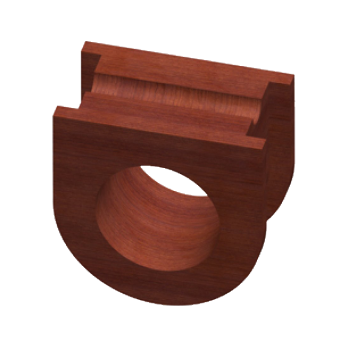

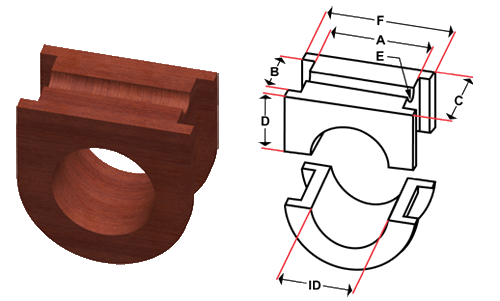

Hanger Bearing Type 216

Fits hanger styles 216, 230, 316, 16B & 216F

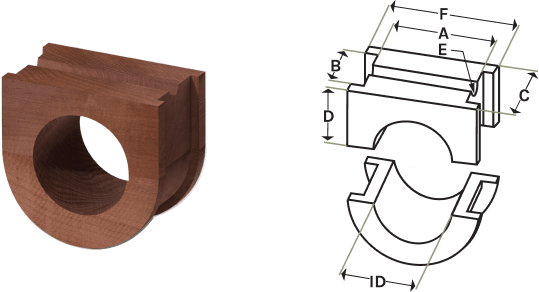

sc type 216 illustration

Specifications

+
Part No. ID A B C D E (Dia.) F
WX1000-216 1” 19/16” 11/8” 17/16” 1” 7/16” 2”
WX1250-216 11/4” 21/4” 13/8” 115/16” 13/8” 9/16” 23/4”
WX1500-216 11/2” 21/4” 13/8” 115/16” 13/8” 9/16” 23/4”
WX2000-216 2” 31/4” 15/8” 115/16” 15/8” 9/16” 33/4”
WX2716-216 27/16” 4” 23/8” 215/16” 21/8” 9/16” 41/2”
WX3000-216 3” 41/2” 21/8” 215/16” 21/4” 9/16” 5”
WX3716-216 37/16” 47/8” 211/16” 315/16” 27/16” 11/16” 51/2”

Documentation

+

Type 216 Hanger Bearing Brochure

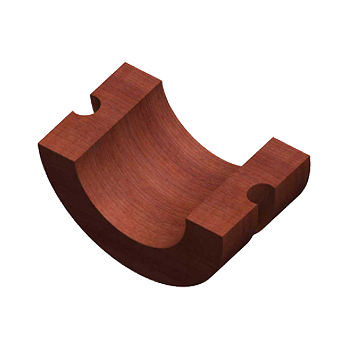

Hanger Bearing Type 18B

Fits hanger styles 18B, 19B, 17 & 40

sc type 18 b illustration

Specifications

+
Part No. ID A B
WX1000-18B 1” 11/2” 17/16”
WX1506-18B (6″ TROUGH) 11/2” 2” 115/16”
WX1509-18B (9″ TROUGH) 11/2” 23/8” 115/16”
WX2000-18B 2” 3” 115/16”
WX2716-18B 27/16” 311/16” 215/16”
WX3000-18B 3” 41/8” 215/16”
WX3716-18B 37/16” 411/16” 315/16”

Documentation

+

Type 18B Hanger Bearing Brochure

Wood Bearing Brochure

Download our full brochure for engineering data, design recommendations and dimensional details for all our standard products.

Download Full Brochure

Need More Information or a Custom Quote?

Our team is ready to assist you with any questions or provide a personalized quote for your wood bearing needs.
Get in touch
